Calculating sea ice area and extent

Background

Sea ice cover is one of the key components of polar ecological and climatological research. This measurement has gained attention because of the recent decrease in the Arctic sea ice cover. Satellite observations are a key tool in tracking sea ice cover, providing continuous global coverage extending back to 1978. Typically for satellite data, sea ice cover is reported as sea ice concentration, which is the percent areal coverage of ice within a grid cell. Depending on the application, additional parameters of interest can be calculated from sea ice cover:
* Sea ice area - the sum of the product of ice concentration and area of all grid cells with at least 15% ice concentration.
* Sea ice extent - the sum of the areas of all grid cells with at least 15% ice concentration

Objective

This tutorial will demonstrate how to calculate the sea ice area and extent using sea ice concentration and grid cell area data. Please visit the NSIDC website for more detailed descriptions of the calculations.

This tutorial demonstrates the following techniques

Downloading and saving a netCDF file from PolarWatch ERDDAP data server
Accessing satellite data and metadata in polar stereographic projection
Downloading and adding grid cell area using OPeNDAP web services
Visualizing data on a map
Computing sea ice area and extent using sea ice concentration data
Plotting a time series of sea ice area and extent

Datasets used

Sea Ice Concentration, NOAA/NSIDC Climate Data Record V4, Northern Hemisphere
The Sea ice concentration (SIC) dataset used in this exercise is produced by NOAA NSIDC from passive microwave sensors as part of the Climate Data Record. It is a science quality dataset of monthly averages that extends from 1978-2022. SIC is reported as the fraction (0 to 1) of each grid cell that is covered by ice. The data are mapped in the Northern Polar Stereographic projection (EPSG:3413). The resolution is 25km, meaning each grid in this data set represents a value that covers a 25km by 25km area. The dataset is available on the PolarWatch data portal and can be downloaded directly from the PolarWatch ERDDAP at the following link: https://polarwatch.noaa.gov/erddap/griddap/nsidcG02202v4nhmday.graph

Polar Stereographic Ancillary Grid Information
This dataset includes area values (m²) of each grid cell in the 25km resolution Northern Polar Stereographic projection (EPSG:3413). The file for this exercise is available in the resources folder or can be downloaded from the NSIDC website at https://nsidc.org/data/nsidc-0771/versions/1. For this tutorial, we will access the dataset directly from the PolarWatch ERDDAP at the following link: https://polarwatch.noaa.gov/erddap/griddap/pstere_gridcell_N25k

Import packages

import urllib.request
import xarray as xr
import numpy as np
import matplotlib.pyplot as plt
import matplotlib as mpl

Download the Arctic Sea Ice Concentration Data

Review of the ERDDAP data request URL

For our first exercise, we will download sea ice concentration data that has been temporally subsetted: * A single month, December 2021

and spatially subsetted: * Y grid values that have been subsetted from the full range (5337500m to -5337500m) to a reduced range (4843696m to -4858210m).

The ERDDAP data request URL for this data subset is presented below.

https://polarwatch.noaa.gov/erddap/griddap/nsidcG02202v4nhmday.nc?cdr_seaice_conc_monthly[(2021-01-01T00:00:00Z):1:(2021-12-01T00:00:00Z)][(4843696.04):1:(-4858210.64)][(-3850000.0):1:(3750000.0)]"

The following table shows the component parts of the ERDDAP data request URL.

Name	Value	Description
base_url	https://polarwatch.noaa.gov/erddap/griddap	ERDDAP URL for gridded datasets
datasetID	nsidcG02202v4nhmday	Unique ID for dataset from PolarWatch ERDDAP
file_type	.nc	format of file to download (netCDF)
query_start	?	Details of the query follow the ?
variable_name	cdr_seaice_conc_monthly	Variable from the dataset
date_range	[(2021-01-01T00:00:00Z):1:(2021-01-01T00:00:00Z)]	Temporal range (2021-01-01)
spatial_range	[(4843696.04):1:(-4858210.64)][(-3850000.0):1:(3750000.0)]	Y and X axes ranges

Generate the ERDDAP data query URL from its component parts

base_url = 'https://polarwatch.noaa.gov/erddap/griddap/'
datasetID = 'nsidcG02202v4nhmday'
file_type = '.nc'
query_start = '?'
variable_name = 'cdr_seaice_conc_monthly'
date_range = '[(2021-01-01T00:00:00Z):1:(2021-01-01T00:00:00Z)]'
spatial_range = '[(4843696.04):1:(-4858210.64)][(-3850000.0):1:(3750000.0)]'

url = ''.join([base_url,
               datasetID,
               file_type,
               query_start,
               variable_name,
               date_range,
               spatial_range
               ])
url

'https://polarwatch.noaa.gov/erddap/griddap/nsidcG02202v4nhmday.nc?cdr_seaice_conc_monthly[(2021-01-01T00:00:00Z):1:(2021-01-01T00:00:00Z)][(4843696.04):1:(-4858210.64)][(-3850000.0):1:(3750000.0)]'

Download the data as a netCDF file and load file data into Python

# Download the data from ERDDAP URL as a netCDF file
urllib.request.urlretrieve(url, "sic.nc")

# Open the netCDF file to create an xarray dataset object
ds = xr.open_dataset("sic.nc")
ds

<xarray.Dataset>
Dimensions:                  (time: 1, ygrid: 389, xgrid: 304)
Coordinates:
  * time                     (time) datetime64[ns] 2021-01-01
  * ygrid                    (ygrid) float32 4.838e+06 4.812e+06 ... -4.862e+06
  * xgrid                    (xgrid) float32 -3.838e+06 -3.812e+06 ... 3.738e+06
Data variables:
    cdr_seaice_conc_monthly  (time, ygrid, xgrid) float32 ...
Attributes: (12/65)
    acknowledgement:                                     This project was sup...
    cdm_data_type:                                       Grid
    cdr_variable:                                        cdr_seaice_conc_monthly
    comment:                                             The variable melt_on...
    contributor_name:                                    Walter N. Meier, Flo...
    contributor_role:                                    principal investigat...
    ...                                                  ...
    summary:                                             This data set provid...
    time_coverage_duration:                              P1M
    time_coverage_end:                                   2021-01-01T00:00:00Z
    time_coverage_resolution:                            P1M
    time_coverage_start:                                 2021-01-01T00:00:00Z
    title:                                               Sea Ice Concentratio...

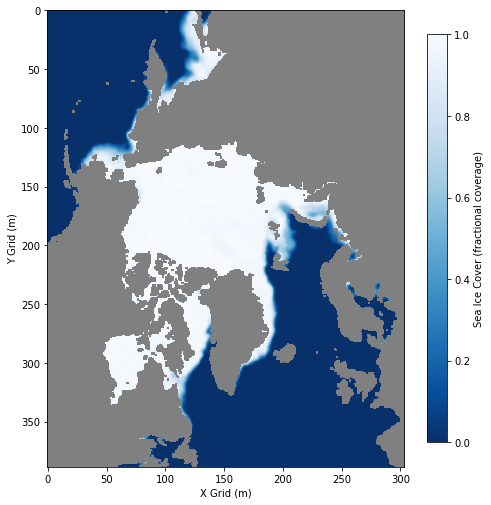

Display the sea ice cover data as a map

The sea ice concentration values range from zero (no ice cover) to 1 (100% ice cover). However, this dataset also includes values above 1 to flag features like lakes, coastline, and land. Therefore, included in the code below is a step to remove those flag values from the mapping workflow.

img = ds['cdr_seaice_conc_monthly'].squeeze()

# Remove flag values
img = img.where(img <= 1)

# Make plot area
fig, ax = plt.subplots(figsize=(8, 10))

# Set the color palette
cmap = mpl.cm.get_cmap("Blues_r").copy()
cmap.set_bad(color='gray')

# show image
shw = ax.imshow(img, cmap=cmap, vmin=0, vmax=1)

# Make the colorbar
bar = plt.colorbar(shw, shrink=0.75)

# show plot with labels
plt.xlabel('X Grid (m)')
plt.ylabel('Y Grid (m)')
bar.set_label('Sea Ice Cover (fractional coverage)')
plt.show()

Get area information from the ancillary grid dataset

While the resolution of this data set is 25km (25km by 25km grid), the actual area of the grid depends on the grid projection. To obtain area value, we will need to:
* Subset the Polar Stereographic Ancillary Grid Information dataset to match our SIC dataset and * Extract the area values for each grid cell.

Access the Ancillary Grid with OPeNDAP web services

ERDDAP allows you to access data using OPeNDAP web services. The OPeNDAP protocol allows you to create the xarray dataset object directly from the remote server, without downloading a data file onto your computer. When you request the subset of the dataset (e.g. the sub_area object below), the data are uploaded directly into an xarray data array.

# Open xarray dataset object via an OPeNDAP connection
grid_url = 'https://polarwatch.noaa.gov/erddap/griddap/pstere_gridcell_N25k'
grid_area = xr.open_dataset(grid_url)

# Subset grid area to match SIC data grids
sub_area = grid_area.sel(x=slice(ds['xgrid'].min(), ds['xgrid'].max()),
                         y=slice(ds['ygrid'].max(), ds['ygrid'].min())
                         )
sub_area

Combine the subsetted grid to the SIC dataset

Add subsetted area values from grid_area dataset as a new layer in the sea ice concentration dataset.

# Add agrid area to the dataset
ds['area'] = (('ygrid', 'xgrid'), sub_area.cell_area.values)
ds

Compute sea ice area and extent

Although area and extent may sound the same, they are different measurements. * Sea ice area is the total region covered by ice, i.e. area that is 100% covered by ice. * Sea ice extent is the total region with at least 15 percent sea ice cover.

Therefore, extent will give higher values than area.

# Subset the dataset to exclude flag values (value > 1)
seaice_ds = ds.where(ds.cdr_seaice_conc_monthly <= 1)

# Set all cell with < 15% ice cover to zero
# Leave the other cells unchanged
cells_15ice_andup = xr.where(seaice_ds.cdr_seaice_conc_monthly.squeeze() < 0.15,
                             0,  # Set to 0
                             seaice_ds.cdr_seaice_conc_monthly.squeeze()   # Set to 1
                             )

# Calculate sea ice area
icearea = seaice_ds.area * cells_15ice_andup

# Convert the units from m^2 to km^2
icearea_km = np.sum(icearea) / 1000000
print("Sea Ice Area (km^2): ", icearea_km.item())

# Compute sea ice extent
# Find all cells with < 0.15 ice cover and set to 0, Set all other cells to 1
cells_15ice_andup = xr.where(seaice_ds.cdr_seaice_conc_monthly.squeeze() < 0.15,
                             0,  # Set to 0
                             1  # Set to 1
                             )

# Calculate sea ice extent
extent = seaice_ds.area * cells_15ice_andup
extent_km = np.sum(extent)/1000000
print("Sea Ice Extent (km^2):", extent_km.item())

Sea Ice Area (km^2):  12528341.191722928
Sea Ice Extent (km^2): 13808725.557170859

Create a time series with 12 months of data

For the next exercise, download 12 months of SIC data from 2021. Then, compute sea ice area and extent for each month and plot the time series.

The first step is to change our ERDDAP data query URL to request the 12 month time period. To do this, change the second part of the Time coverage component of the URL December of 2021 (see the table below).

Name	Value	Description
base_url	https://polarwatch.noaa.gov/erddap/griddap	ERDDAP URL for gridded datasets
datasetID	nsidcG02202v4nhmday	Unique ID for dataset from PolarWatch ERDDAP
file_type	.nc	NetCDF (there are many other available file formats)
query_start	?	Details of the query follow the ?
variable_name	cdr_seaice_conc_monthly	Variables from the dataset
date_range	[(2021-01-01T00:00:00Z):1:(2021-12-01T00:00:00Z)]	Temporal range
spatial_range	[(4843696.04):1:(-4858210.64)][(-3850000.0):1:(3750000.0)]	Spatial range

The modified ERDDAP data request URL for this data subset is presented below:

url=“https://polarwatch.noaa.gov/erddap/griddap/nsidcG02202v4nhmday.nc?cdr_seaice_conc_monthly[(2021-01-01T00:00:00Z):1:( 2021-12-01T00:00:00Z )][(4843696.04):1:(-4858210.64)][(-3850000.0):1:(3750000.0)]

We can generate the URL quickly by changing the “date_range” variable
* From: date_range = '[(2021-01-01T00:00:00Z):1:(2021-01-01T00:00:00Z)]'
* To: date_range = '[(2021-01-01T00:00:00Z):1:(2021-12-01T00:00:00Z)]'

Then rerunning the code to generate the ERDDAP data query URL.

date_range = '[(2021-01-01T00:00:00Z):1:(2021-12-01T00:00:00Z)]'

url = ''.join([base_url,
               datasetID,
               file_type,
               query_start,
               variable_name,
               date_range,
               spatial_range
               ])
url

'https://polarwatch.noaa.gov/erddap/griddap/nsidcG02202v4nhmday.nc?cdr_seaice_conc_monthly[(2021-01-01T00:00:00Z):1:(2021-12-01T00:00:00Z)][(4843696.04):1:(-4858210.64)][(-3850000.0):1:(3750000.0)]'

Generate the sea ice area and extent time series

# Download 12 months of data
urllib.request.urlretrieve(url, "sic12.nc")

# Open the netCDF file to create an Xarray dataset object
ds = xr.open_dataset("sic12.nc")

# Add grid area to the dataset
cell_area = sub_area.cell_area.values
ds['area'] = (('ygrid', 'xgrid'), cell_area)

# Subset the dataset to exclude flag values
seaice_ds = ds.where(ds.cdr_seaice_conc_monthly <= 1)

# Find all cells with < 0.15 ice cover and set to 0.
# Leave the other cells unchanged
cells_15ice_andup_ts = xr.where(seaice_ds.cdr_seaice_conc_monthly < 0.15,
                                0,  # Set to 0
                                seaice_ds.cdr_seaice_conc_monthly
                                )

# Calculate sea ice area for each time layer
icearea_timeseries = seaice_ds.area * cells_15ice_andup_ts

# Sum area for each time step and convert to km^2
icearea_timeseries_km = icearea_timeseries.sum(dim=['xgrid', 'ygrid']) / 1000000

# Find all cells with < 0.15 ice cover and set to 0. Set all other cells to 1
cells_15ice_andup_ts = xr.where(seaice_ds.cdr_seaice_conc_monthly < 0.15,
                                0,  # Set to 0
                                1  # Set to 1
                                )

# Calculate sea ice extent by month
extent_timeseries = seaice_ds.area * cells_15ice_andup_ts

# # Sum extent for each time step and convert units to km^2
extent_timeseries_km = extent_timeseries.sum(dim=['xgrid', 'ygrid']) / 1000000

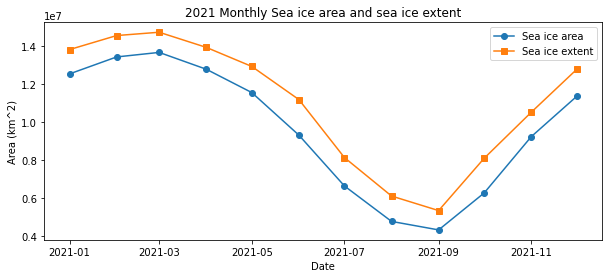

Plot the sea ice area and extent time series


fig, ax = plt.subplots(figsize=(10, 4))

# Plot the data as a line
ax.plot(icearea_timeseries_km.time,
        icearea_timeseries_km,
        label='Sea ice area',
        marker='o',
        linestyle='-')

ax.plot(extent_timeseries_km.time,
        extent_timeseries_km,
        label='Sea ice extent',
        marker='s',
        linestyle='-')

# Add a title and labels
ax.set_title('2021 Monthly Sea ice area and sea ice extent')
ax.set_xlabel('Date')
ax.set_ylabel('Area (km^2)')

# Display the legend
ax.legend()

# Show the plot
plt.show()

References

NSIDC Data Product Description
NSIDC Data Product User Guide (pdf)
PolarWatch Data Catalog
What’s the difference between Sea ice area and extent?
NSIDC Arctic Sea Ice News & Analysis
Climate.gov Understanding Climate: sea ice extent
